Folding Stacking Wire Cage with Wooden Pallets
Product Description
Other kinds of wire cage for your choice
Specification of stacking wire cage

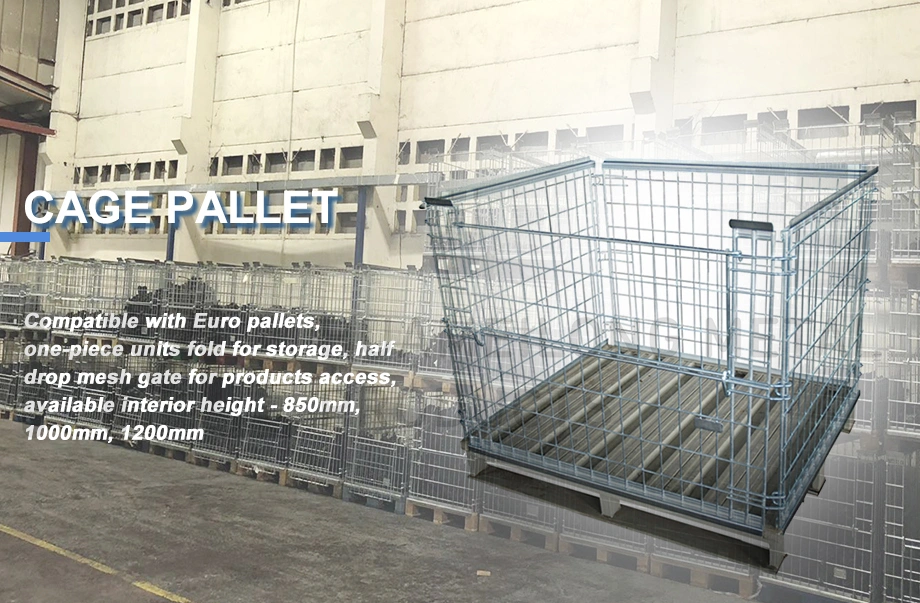

Folding stacking wire cage with wooden pallets
Compatible with Euro pallets, one-piece units fold for storage, half drop mesh gate for products access,
available interior height - 850mm, 1000mm, 1200mm, etc
Benefits & Designs of folding wire cage

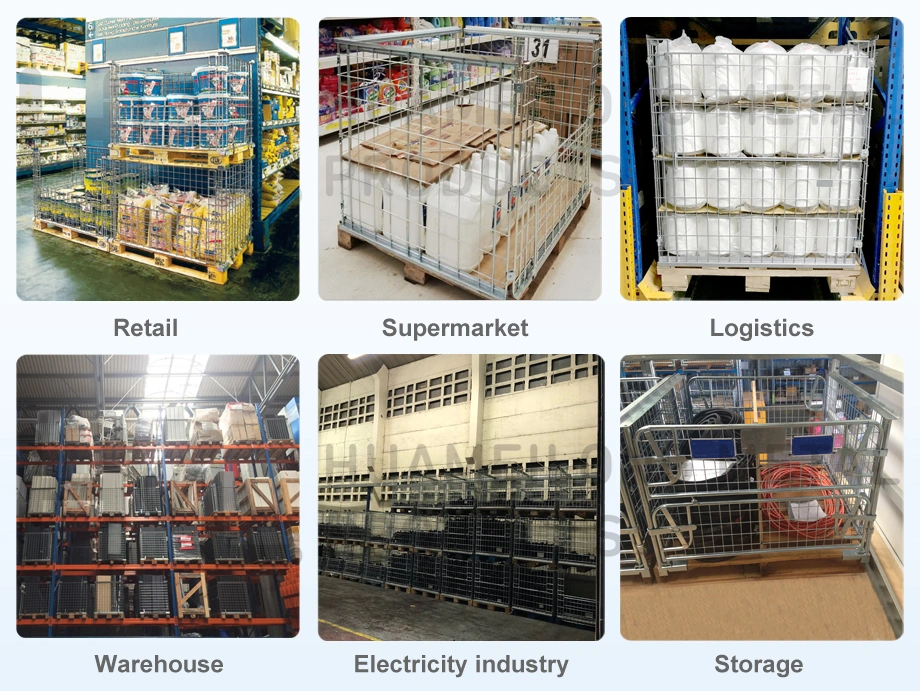

Application, packaging & loading of wire cage with wooden pallets
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.

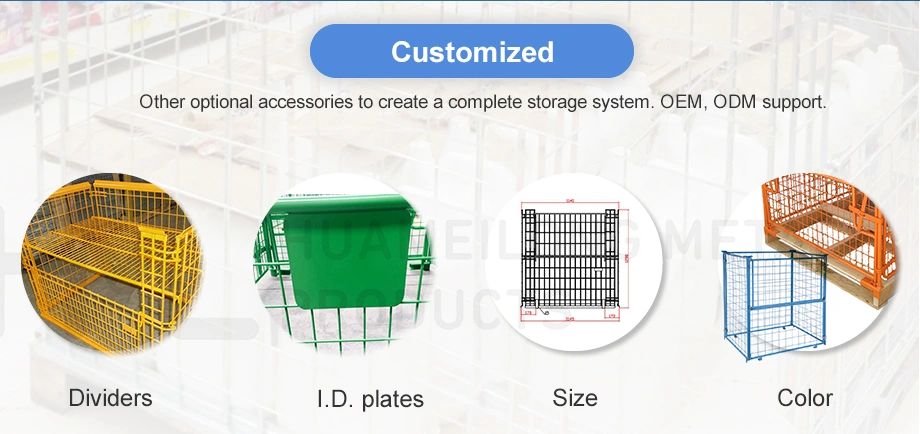

7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)
Specification of stacking wire cage
| Same design, different sizes | ||||||
| Model No. | Exterior Dimension | Interior High | Wire Guage | Grid Size | Loading Capacity | Loaded in 1x40'GP |
| LxWxH(mm) | mm | mm | mm | kg | sets | |
| NF-1 | 1200x800x1000 | 850 | ¢5-¢12 | 60x103 | 800 | 480 |
| NF-2 | 1000x1200x1450 | 1300 | ¢5-¢10 | 60x105 | 1000 | 280 |
| NF-3 | 1200x1000x1200 | 1200 | ¢5-¢10 | 60x105 | 800 | 460 |
| NF-4 | 1200x1000x1000 | 1000 | ¢5-¢10 | 60x105 | 800 | 480 |
| NF-5 | 1200x800x1000 | 1000 | ¢5-¢10 | 60x105 | 800 | 480 |
| Material | Mild steel Q235 | |||||
| Application area | Warehouse, logistic, mass retail, recycling industry, etc. | |||||
| Finish | Zinc/hot dip galvanized/powder coating | |||||
| Remark | Costomized or OEM support | |||||
| Main Features | 1.Collapsible-save space when not in use,ideal for return journeys 2.Bright electro zinc plated finish 3.Standard half-hinged gate access 4.Long lasting,economical alternative to disposable packing 5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness. 6.Four-way entry for easy use with lift trucks | |||||
Folding stacking wire cage with wooden pallets
Compatible with Euro pallets, one-piece units fold for storage, half drop mesh gate for products access,
available interior height - 850mm, 1000mm, 1200mm, etc
Benefits & Designs of folding wire cage
Application, packaging & loading of wire cage with wooden pallets
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)
